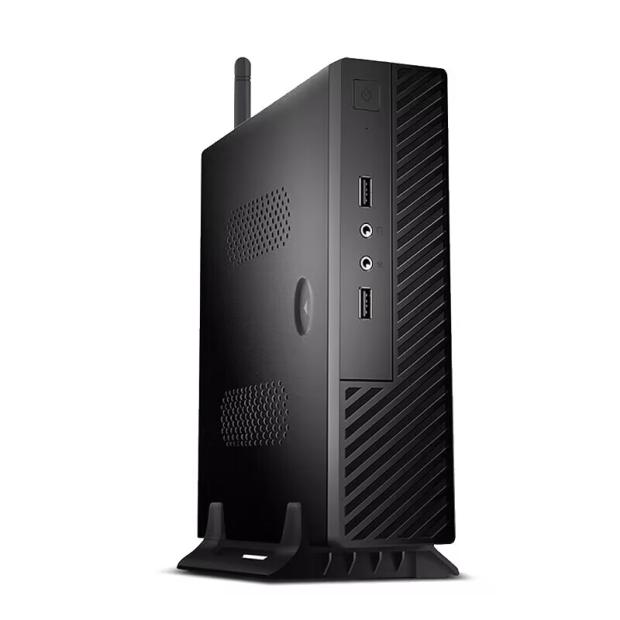

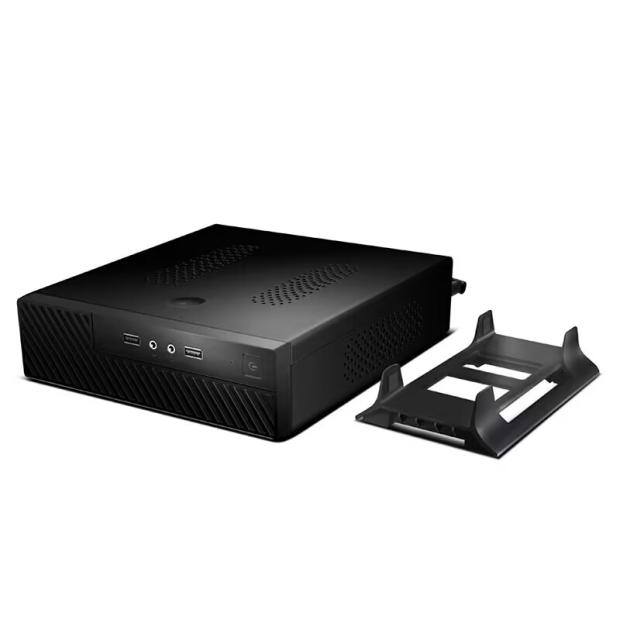

AFOX - AFM02-12700Z

Product Specifications

• Platform
• • Processor: Intel® Core™ i7-12700
  • Model Name: AFM02-12700Z
  • Chipset: Intel® Core™ i7-12700 Processor, 25M Cache, up to 4.80 GHz (65W)
• Storage
• • SATA 3.0:
  • • 1 x SATA 3.0
    • Supports 2.5" HDD/SSD (1 x 3 Gbps) 5V/12V (4Pin, 1*4Pin, 2.54mm)
  • M.2 Slot:
  • • 1 x M.2 slot for M.2 NGFF 22*80 (Key M)
    • Supports up to 2TB (NVME)
    • Standard PCIe 3.0 hard disk interface, maximum transfer speed of 32.0 Gbps
• LAN
• • 1 x RJ45 Giga LAN RTL8111/8112 Gigabit Ethernet Controller, 1000Mbps BaseT LAN
• Audio
• • Integrated Realtek ALC269HD digital audio decoder
  • 6-channel high-fidelity audio controller (output)
• Operating System
• • Supports Windows 10/11 and Linux
• Onboard Graphics
• • Intel® UHD Graphics 730
• I/O (Rear)
• • 4 x HDMI 2.0 (4096 x 2160 @ 60Hz)
  • 1 x COM (1920 x 1200 @ 60Hz)
  • 1 x LAN Port with LED
  • 1 x Audio (1 x MIC, 1 x SPK)
  • 1 x WiFi Port
  • 4 x USB 3.0
  • 2 x USB 2.0
  • 1 x DC Port (19VDC~7A)
• Structure
• • Dissipation: Fan
  • Housing: Aluminum alloy
  • Bracket: VESA bracket (optional)
• Dimensions
• • 210 x 200.4 x 55 mm (WxDxH)
• Weight
• • Net: 1.42 kg
  • Gross: 2.0 kg
• Power Supply
• • AC Input: 100-240V AC / 50-60Hz (5.5*2.5mm)
  • DC Input: 19V, recommend 12V/6.32A (90W)
• Temperature & Humidity
• • Working Temperature: -0°C ~ 70°C
  • Storage Temperature: -20°C ~ 80°C (-20°F ~ 176°F)
  • Working Humidity: 10% - 85% @ 40°C non-condensing
• BIOS
• • UEFI BIOS
• Accessories
• • 1 x Power adapter (12V/6.32A, 5.5*2.5mm)
  • 1 x Power cable (1.2M)
  • 1 x User Manual
  • 1 x HDMI cable (optional)
  • 1 x Stand holder (optional)
  • 1 x VESA mount (optional)
  • 1 x WiFi (optional)

Key Features

• Small size, high performance. Built-in Intel 12^th  latest core processor :High performance core display refreshing game full of combat power
• All-copper thermal module Efficient heat dissipation : High speed silent fan+All copper heat sink. Mini PC keep cool even play game for long time.
• Creative design Release inspiration :Easy to deal with on Graphic design, industrial design, machine design etc.
• Rich interfaces meet the requirements of different scenarios.: Come with WIFI 5, Data transmission is more stable and efficient.
