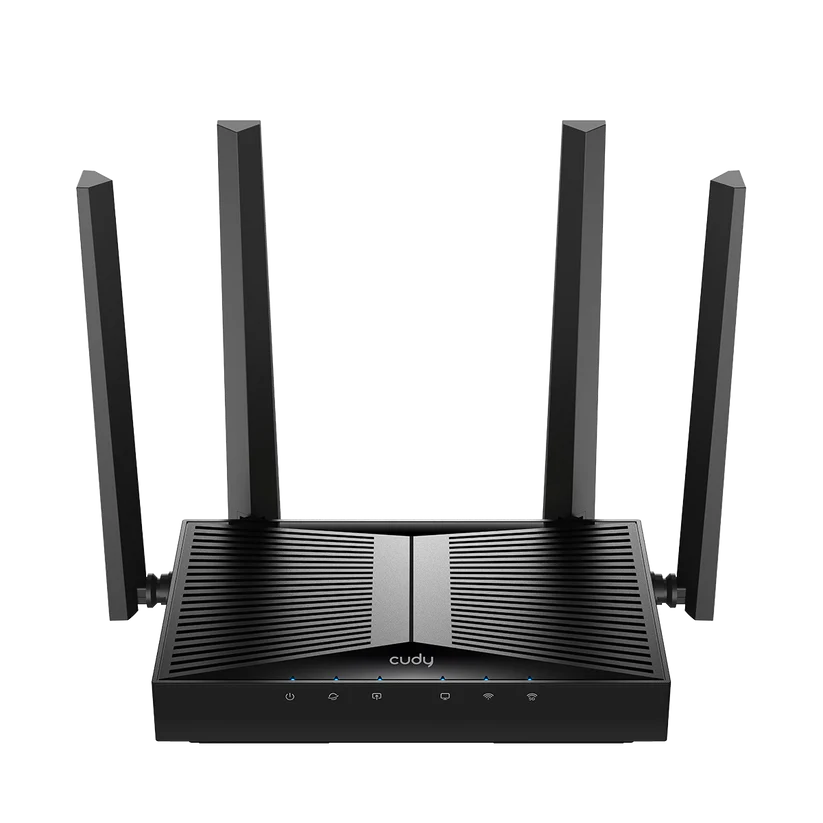

Cudy BE3600 Wi-Fi 7 Router | High-Speed Dual-Band Router with Multi-Gig Port

Technical Specification

SpecificationDetails

CPU

Broadcom BCM6764, 2.0 GHz Quad-Core ARM Cortex-A7

Memory

128 MB NAND Flash, 512 MB DDR3L RAM

Ports

1× 2.5G RJ45 WAN Port, 4× Gigabit RJ45 LAN Ports

Buttons

WPS Button, Reset Button

LED Indicators

Power, Internet, WAN, LAN, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi

Wi-Fi Standards

Wi-Fi 7 (802.11be)

Dual-Band Speeds

5 GHz: Up to 2882 Mbps (2×2 MIMO), 2.4 GHz: Up to 688 Mbps (2×2 MIMO)

Operation Modes

Wi-Fi Router, Access Point

Security Protocols

WPA/WPA2/WPA3 encryption

VPN Support

WireGuard, OpenVPN, IPsec, PPTP, L2TP, Zerotier (Server & Client)

QoS (Quality of Service)

Per-user rate limiting

Guest Network

Available for both bands

Antennas

Four fixed antennas with max gain of 5.5 dBi (5 GHz) and 5.4 dBi (2.4 GHz)

Beamforming

Supported

Range

Max outdoor range of up to 220 m (722 ft); indoor range varies based on wall materials
