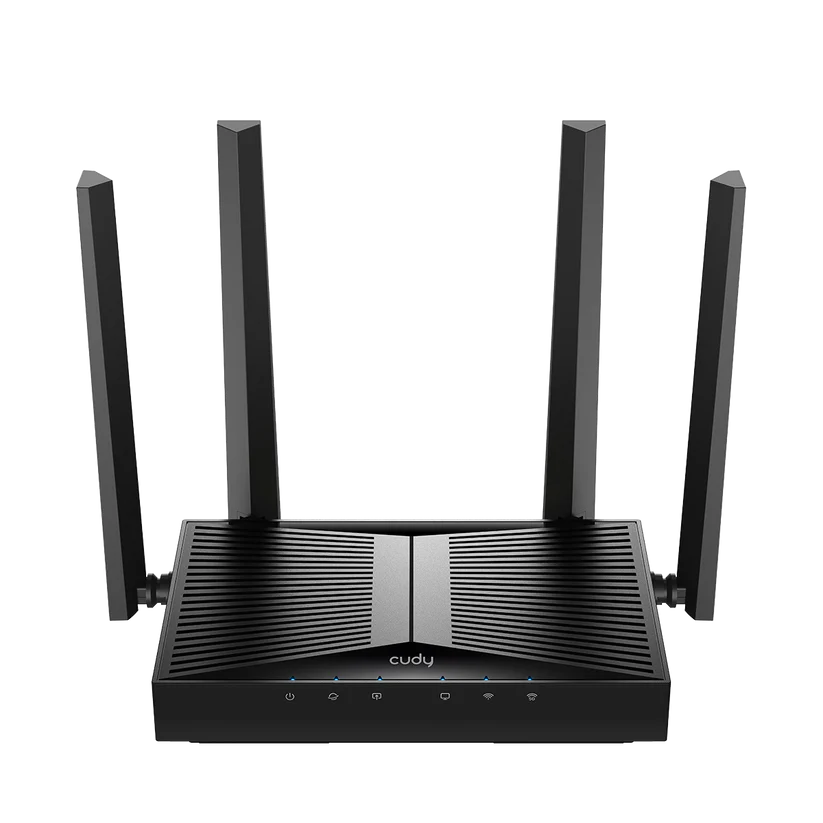

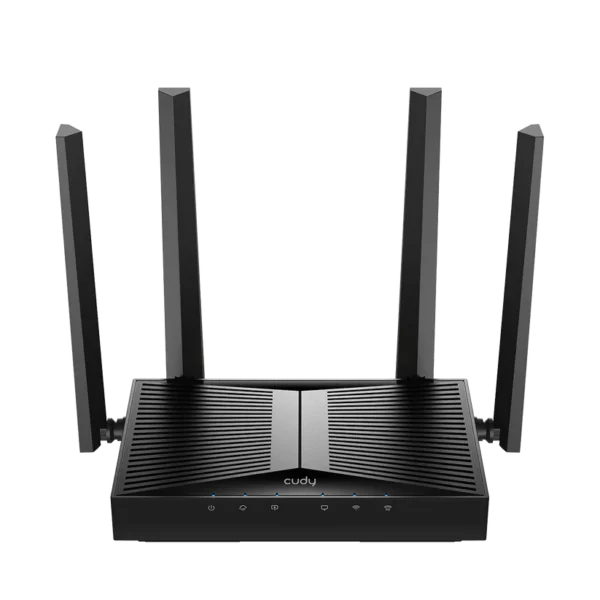

Cudy BE5000 Wi-Fi 7 Router - High-Performance Dual-Band Mesh Networking

Technical Specifications

CategoryDetails

Model Version

WR5000 1.0

CPU

MediaTek MT7991 Dual-Core ARM Cortex-A53

Memory/Storage

128 MB NAND Flash, 512 MB DDR3L RAM

Wireless Standards

Wi-Fi 7 with 4K-QAM, OFDMA, MU-MIMO, BSS Color

Wi-Fi Speed

5 GHz: 4324 Mbps; 2.4 GHz: 688 Mbps

Wi-Fi Streams

5 GHz: 3T3R (3×3 MIMO); 2.4 GHz: 2T2R (2×2 MIMO)

Antenna Gain

5 GHz: Max 5.5dBi; 2.4 GHz: Max 5.4dBi

Range Performance

Up to 220 m (722 ft)

Interfaces

1× 2.5GbE WAN Port; 4× Gigabit LAN Ports

Power Supply

DC Input: 12V/1.5A; Max Power Consumption: 12W

Operating Environment

Temperature: 0 ℃ ~ 40 ℃; Humidity: 10% ~ 90% non-condensing

Certifications

FCC, CE

Installation Options

Desktop or Wall-Mount

Advanced Features

Cudy Mesh (Wireless/Wired Backhaul), VPN Server & Client, QoS, IPv6

Security Features

WPA/WPA2/WPA3, SPI Firewall, DoS Protection

Management Options

Web Interface, Cudy App, Remote Control via HTTPS

Languages Supported

Multiple languages including English, Spanish, French, Chinese, etc.
