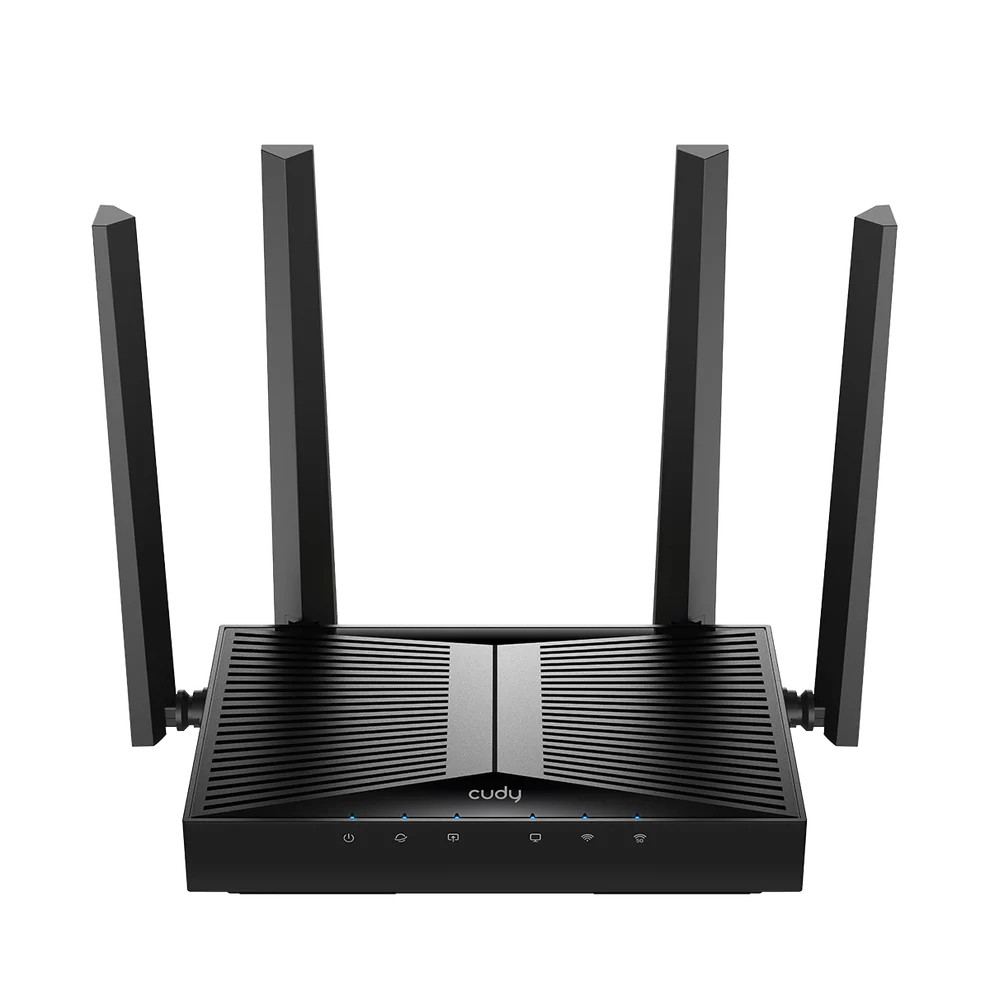

Cudy WR3600 1.0 Wi-Fi 7 Router | Dual-Band 3570 Mbps |

Technical Specifications

Hardware Specifications

CategoryDetails

Model Version

WR3600 1.0

Processor

BCM6764 Chipset 2.0 GHz Quad-Core ARM Cortex-A7

Memory

512 MB DDR3L RAM 128 MB NAND Flash

Wireless

5 GHz Band: 2882 Mbps 2×2 MIMO5.5dBi Antennas 2.4 GHz Band: 688 Mbps 2×2 MIMO5.4dBi Antennas

Beamforming

Supported

FEM/PA

External (2× for 5 GHz, 2× for 2.4 GHz)

Range

Up to 220 m (722 ft) Penetrates 2 concrete walls (20 cm thickness)

Ports

5× Gigabit Ethernet (1 WAN + 4 LAN)

Power

12V/1A DC Adapter 9W Max Consumption

Design

Desktop/Wall-mountable Dimensions: 183.3×109×38 mm (7.22×4.29×1.5 in) Weight: 333.5 g

Certifications

FCC, CE

Package Includes

Router, Power Adapter, Ethernet Cable, Installation Guide

Software Specifications

CategoryDetails

Wi-Fi Standards

Wi-Fi 7 (802.11be) 4K-QAM, OFDMA, MU-MIMO

Security

WPA3/WPA2/WPA VPN Support (WireGuard, OpenVPN, IPsec, Zerotier)

Management

Modes: Router, Access Point, Multi-Band Backhaul (Mesh-ready) QoS: Per-User Rate Limiting Guest Networks: Separate 2.4 GHz/5 GHz SSIDs DNS: DNS over TLS (Cloudflare, Google, Quad9) Parental Controls: Domain/IP Filtering, MAC Filtering

Firmware Updates

Local/OTA Updates TR-069/TR-181 Remote Management

Scalability

Supports up to 200 clients 512 max device capacity

Languages

30+ Languages (English, Spanish, Chinese, Japanese, German, etc.)
