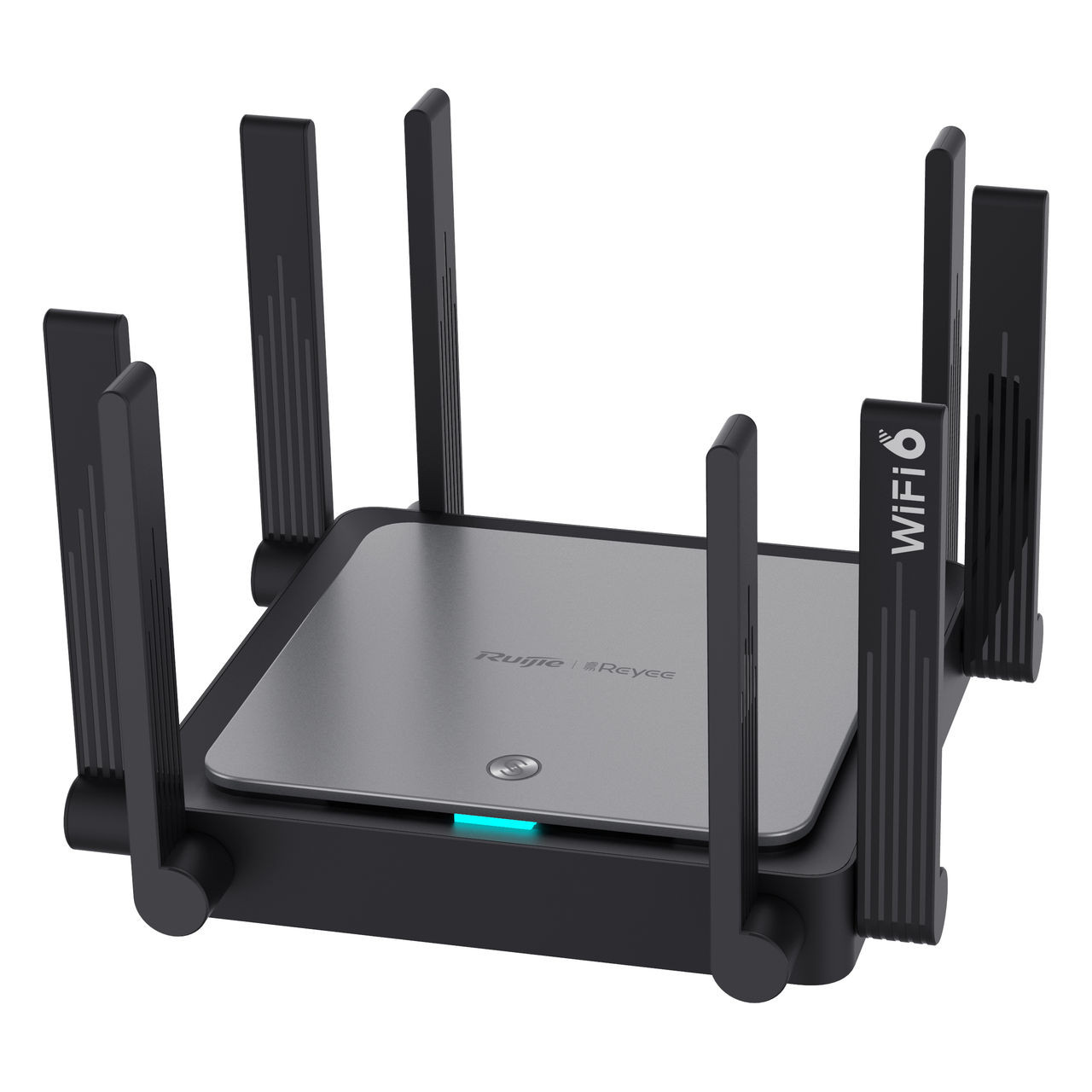

Ruijie Reyee RG-EW3200GX PRO

Technical Specifications

SpecificationDetails

Model

RG-EW3200GX PRO

Type

Wi-Fi 6 Dual-band Gigabit Mesh Router

Dimensions

190 mm x 190 mm x 41 mm

Weight

0.8 kg

Wi-Fi Standards

Wi-Fi 6 (802.11ax)

MIMO Configuration

2.4 GHz: 4×4, MU-MIMO 5 GHz: 4×4, MU-MIMO

Max. Wi-Fi Speed

2.4 GHz: 800 Mbps 5 GHz: 2402 Mbps Total: 3200 Mbps

Channel Width

2.4 GHz: Auto/20/40 MHz 5 GHz: Auto/20/40/80 MHz

Antennas

8 External Omnidirectional

Antenna Gain

2.4 GHz: 5 dBi 5 GHz: 6 dBi

Ports

WAN: 1×10/100/1000 Base-T LAN: 4×10/100/1000 Base-T

Recommended Users

60

Max. Users

192

Power Supply

DC 12V/2.5A

Power Consumption

≤36W

Operating Frequency Bands

2.4 GHz: 2.400 GHz to 2.483 GHz 5 GHz: 5.150 GHz to 5.850 GHz

DFS

Supported

Transmit Power (CE EIRP)

2.4 GHz: ≤20 dBm 5 GHz: ≤27 dBm

Operating Temperature

-10 °C to +45 °C

Operating Humidity

5% to 95% Noncondensing

Certifications

CE, RoHS
