Description
ES 10XP Product Introduction

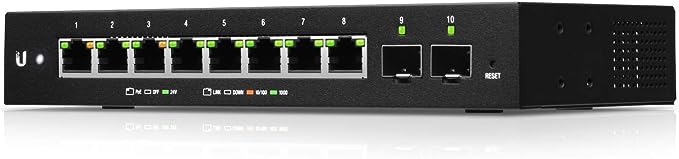

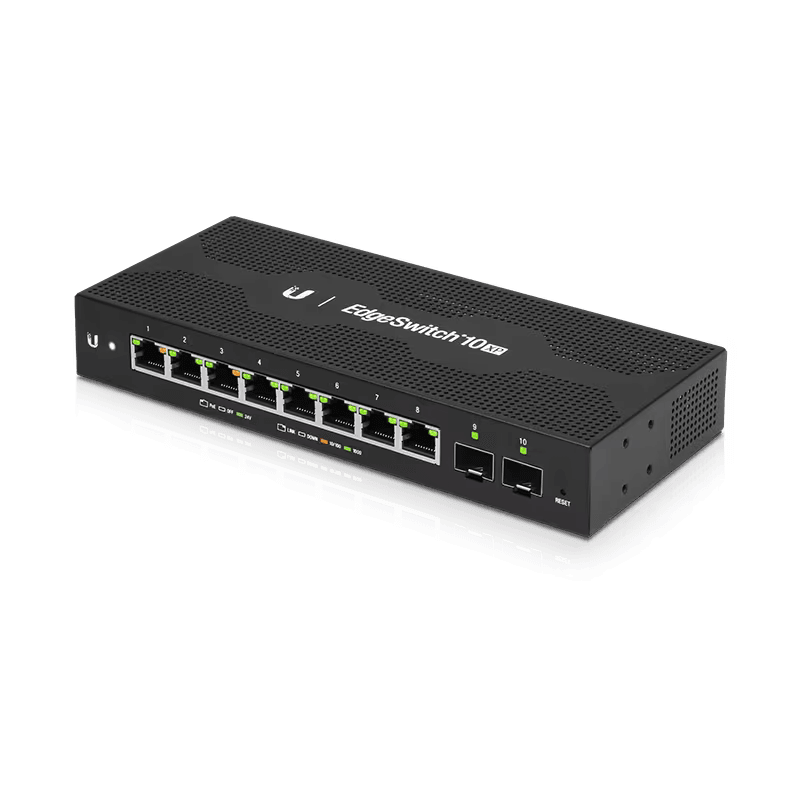

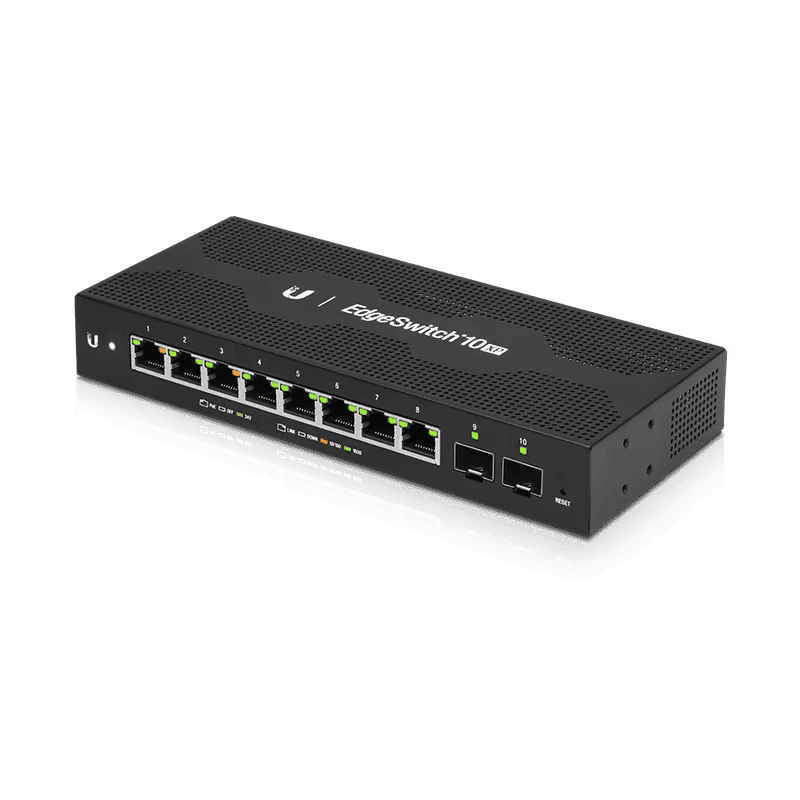

The ES 10XP is purpose-built for WISP and enterprise access networks, delivering reliable PoE output and flexible fiber uplinking. With an intuitive browser-based interface and UNMS support, the switch simplifies network management while offering strong performance in both small and large deployments. Its fanless architecture provides silent, energy-efficient operation suited for office and structured network environments.
Ubiquiti EdgeSwitch 10XP Product Highlights
- 10-port managed Gigabit switch with PoE
- 24V passive PoE across all RJ45 ports
- Dual SFP uplink interfaces for fiber backhaul
- Silent fanless design
- Easy configuration through redesigned UI and UNMS
- Ideal for WISP towers, offices, and enterprise PoE setups
EdgeSwitch 10XP Product Key Features
- (8) 10/100/1000 Mbps RJ45 ports + (2) SFP ports
- Full 24V passive PoE output on all copper ports
- External AC/DC power adapter support
- EdgePower compatibility for battery backup
- Desk, wall, and optional rackmount flexibility
- Lightweight, durable design for enterprise use
Frequently Asked Questions on Ubiquiti EdgeSwitch 10XP
1. Is the ES 10XP suitable for outdoor or industrial installations?
No, the ES 10XP is designed for indoor environments and controlled network spaces.
2. Can the EdgeSwitch 10XP be managed through EdgeOS or only through the Web UI?
It is managed via the Web UI and UNMS; EdgeOS is not supported on this model.
3. What is the power consumption of the EdgeSwitch 10XP under full load?
Its power draw remains low, even under PoE load, making it efficient for enterprise use.
4. Does the ES 10XP support VLAN tagging and trunking?
Yes, it supports VLAN tagging, trunking, and advanced Layer 2 features.
5. Is fanless operation supported for silent performance?
Yes, the ES 10XP uses a fanless design for quiet and reliable operation.
