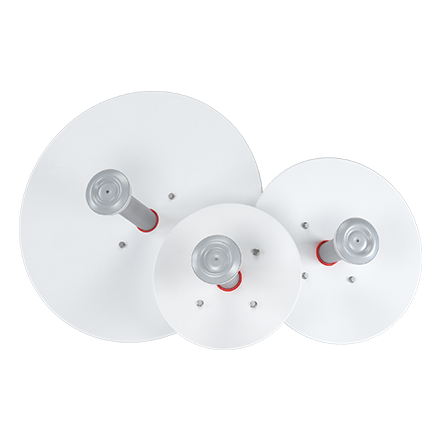

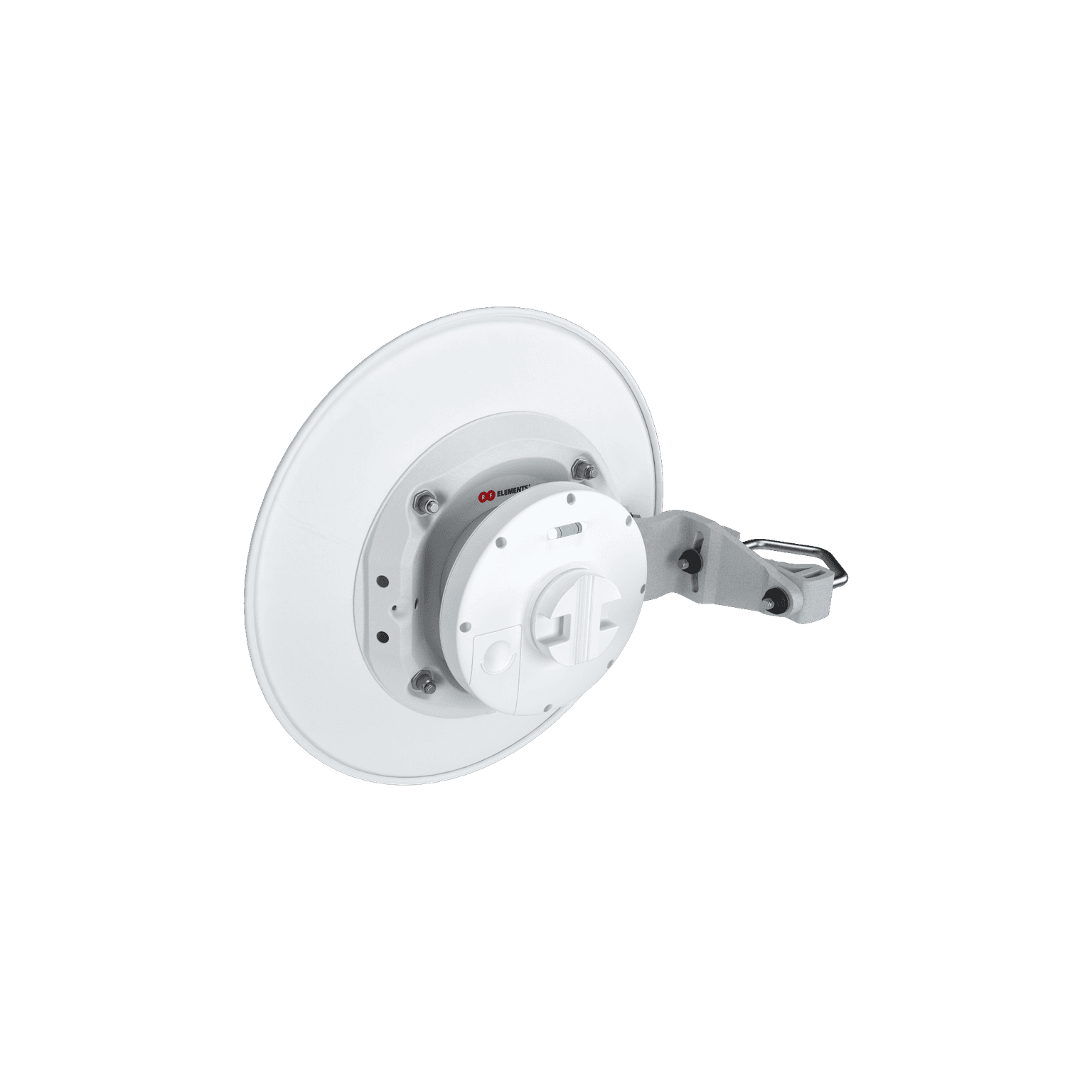

RF Element StarterDishTM UM Antennas

Technical Specifications

• Antenna Connection: Waveguide Port
• Antenna Type: Parabolic Dish
• Environmental Rating: IP65
• Pole Mounting Diameter: 20-55 mm
• Temperature Range: -35 to +55 °C (-31°F to +131°F)
• Wind Survival: 160 km/h
• Antenna Compatibility:
• • RF elements®: StarterAdapter™ SMA
  • Mimosa® by Airspan: C5x
  • Ubiquiti Networks®:
  • • PrismStation™ 5AC
    • IsoStation™ 5AC
    • IsoStation™ M5

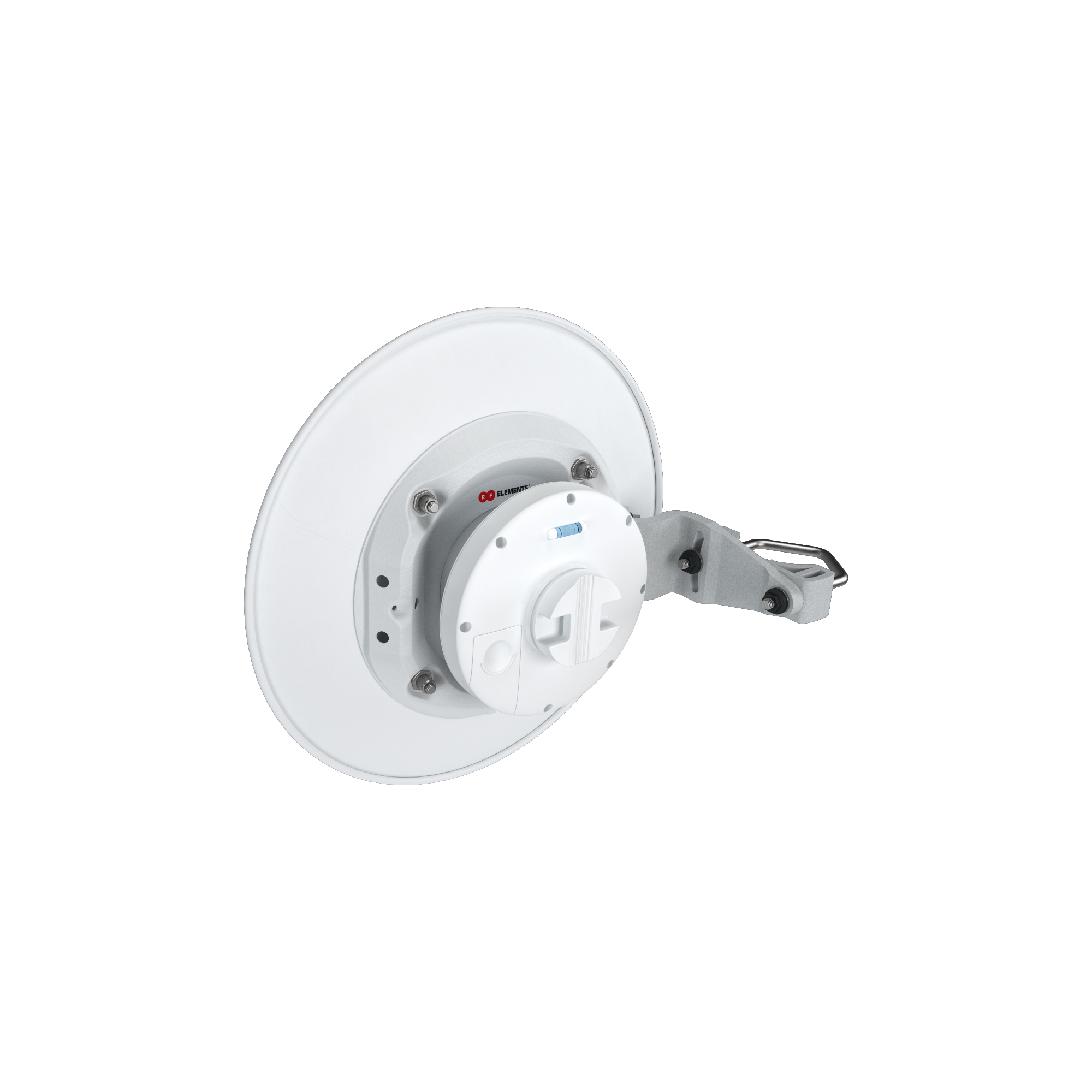

  • StarterDish™ 21 UM
  • • Product ID: STD-21-UM-5PACK
    • Gain: 21 dBi
    • Frequency Range: 5150 - 5950 MHz
• StarterDish™ 24 UM:
• • Product ID: STD-24-UM-5PACK
  • Gain: 24 dBi
  • Frequency Range: 5150 - 6400 MHz

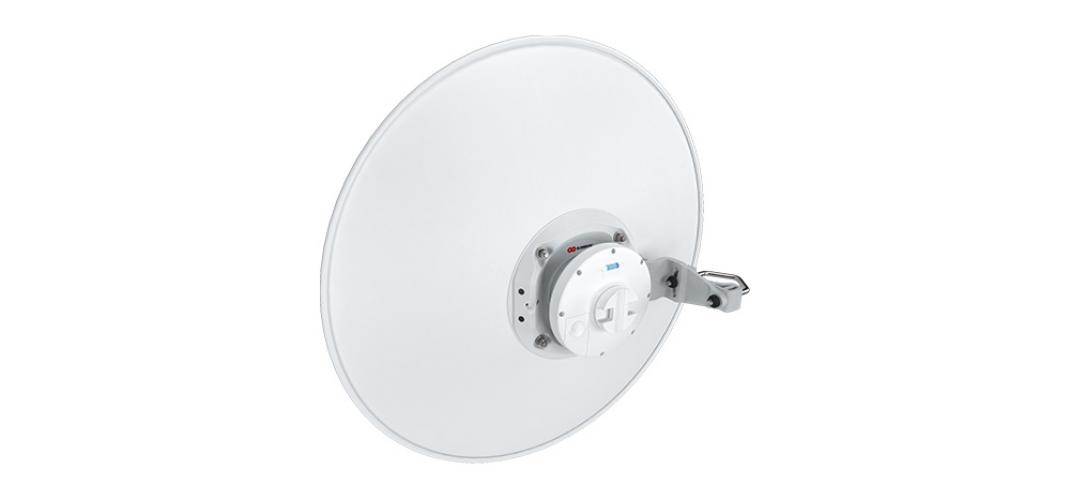

• StarterDish™ 27 UM:
• • Product ID: STD-27-UM-5PACK
  • Gain: 27 dBi
  • Frequency Range: 5150 - 6400 MHz
