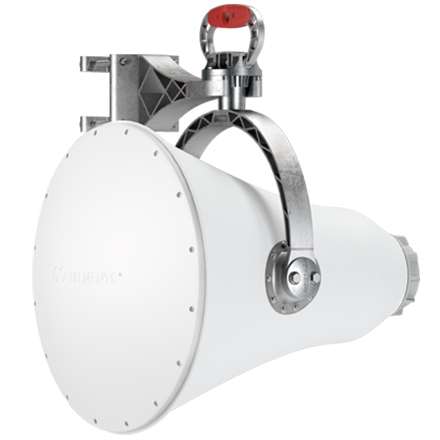

RF Elements UltraHorn Directional Antennas

Technical Specifications

• Antenna Connection : TwistPort™ - Quick Locking Waveguide Port
• Antenna Type :Horn
• Environmental :IP55 rated (protection against dust and low-pressure water jets)
• Pole Mounting Diameter :Compatible with poles of diameter: 30-80 mm
• Temperature Range :Operational: -30°C to +55°C (-22°F to +131°F)
• Wind Survival :Withstands winds up to 160 km/h (100 mi/h)
• Wind Loading : 210 N at 160 km/h (100 mi/h)

Key Features

• Ultimate Noise Rejection: Designed to operate effectively in high-noise environments, ensuring clear signal transmission.

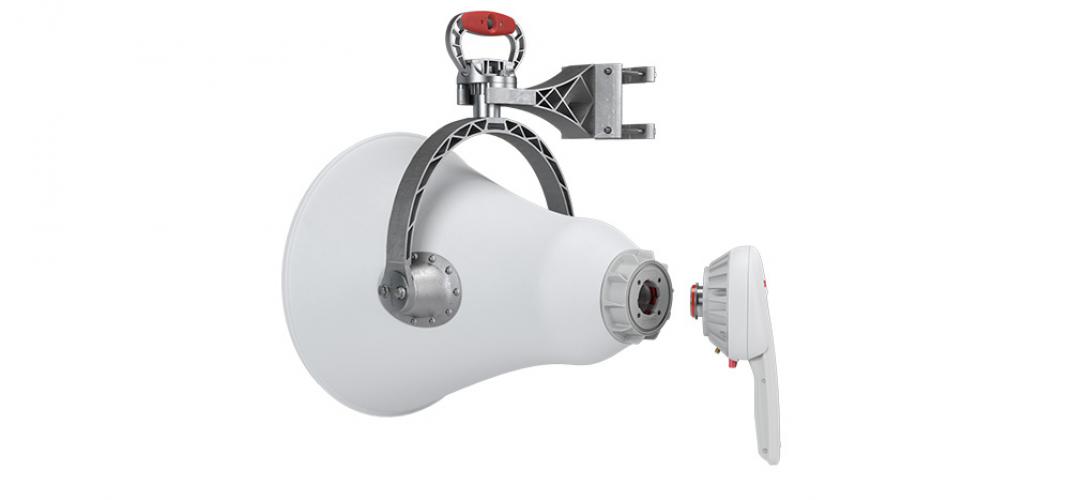

• Zero Loss Connection: The TwistPort™ connector provides a lossless connection, simplifying installation with a “twist and lock” mechanism.
• Directional Performance: Focuses the signal into a narrow beam without side lobes, enabling long-distance communication with minimal interference.
• Complete Solution: Comes as a complete antenna solution for point-to-point links, eliminating the need for additional radomes or shrouds.
• Innovative Mounting System: Features a unique mounting design that separates the bracket from the antenna for easy installation and adjustment.
• Versatile Applications: Perfect for various wireless communication setups, including point-to-point and point-to-multipoint configurations.
