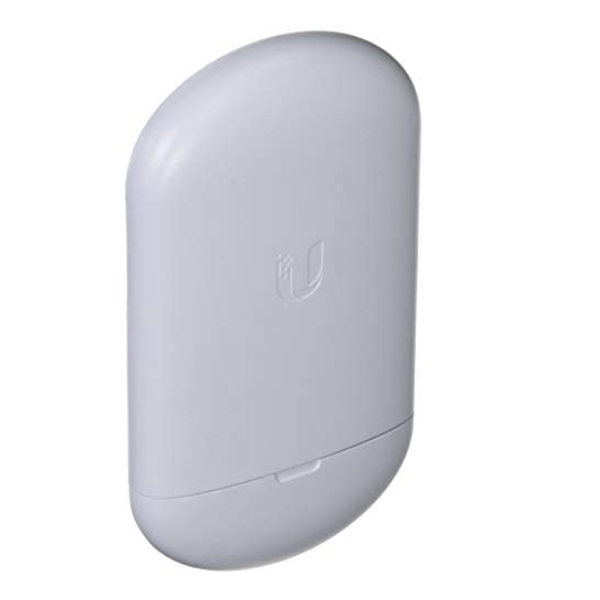

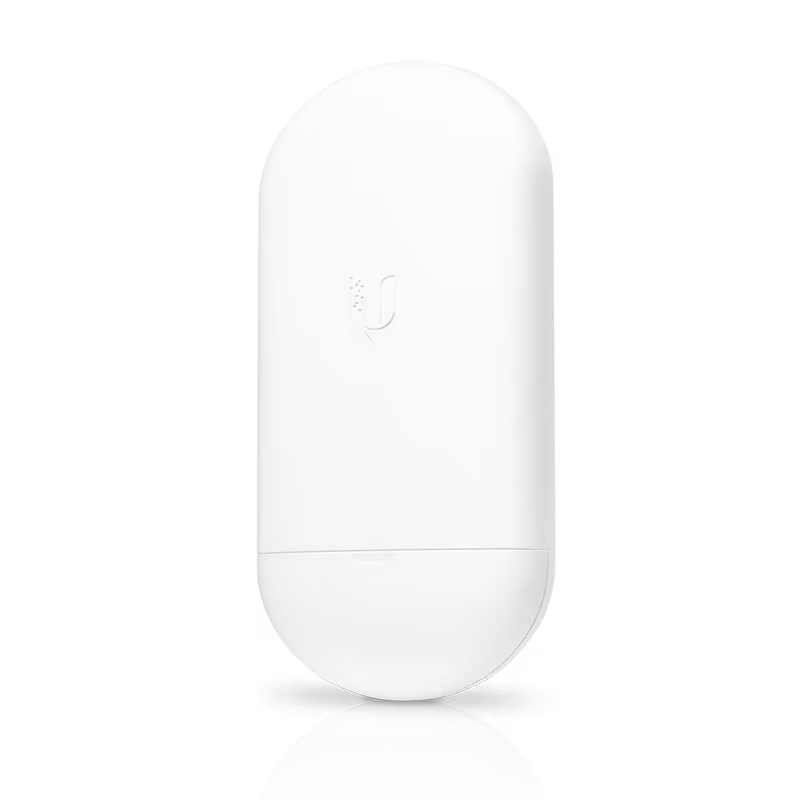

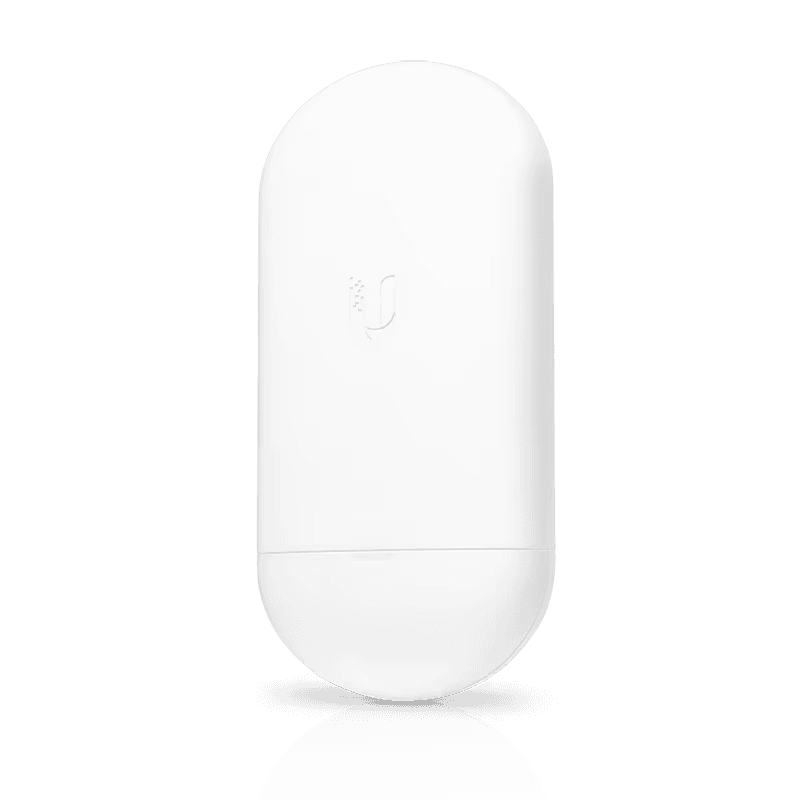

Ubiquiti Loco5AC

Product introduction:

Designed for deployment in a variety of environments in which point to multi-point communication is needed, the NanoStation AC loco 5 GHz airMAX ac Radio from Ubiquiti Networks offers enhanced connectivity options. This radio comes equipped with a Gigabit Ethernet networking interface and supports 10/20/30/40/50/60/80 MHz channel bandwidths. Installation is simple, thanks to the included pole-mount kit, while the outdoor UV stabilized plastic enclosure allows the airMAX ac radio to be installed in nearly any environment.



Product Highlights:

  • Gigabit Ethernet Networking Interface
  • 10/20/30/40/50/60/80 MHz Bandwidth
  • 560 MHz Atheros MIPS 74Kc Processor
  • 64 MB DDR2 Memory
  • 8:1 Max VSWR
  • 45° Beamwidth
  • Dual Linear Polarization
  • Outdoor Stabilized UV Plastic Enclosure
  • Includes Pole-Mount Kit



Product key features:

  • Versatile Mounting – The NanoStation AC loco 5 GHz airMAX ac Radio is suitable for indoor and outdoor installations.

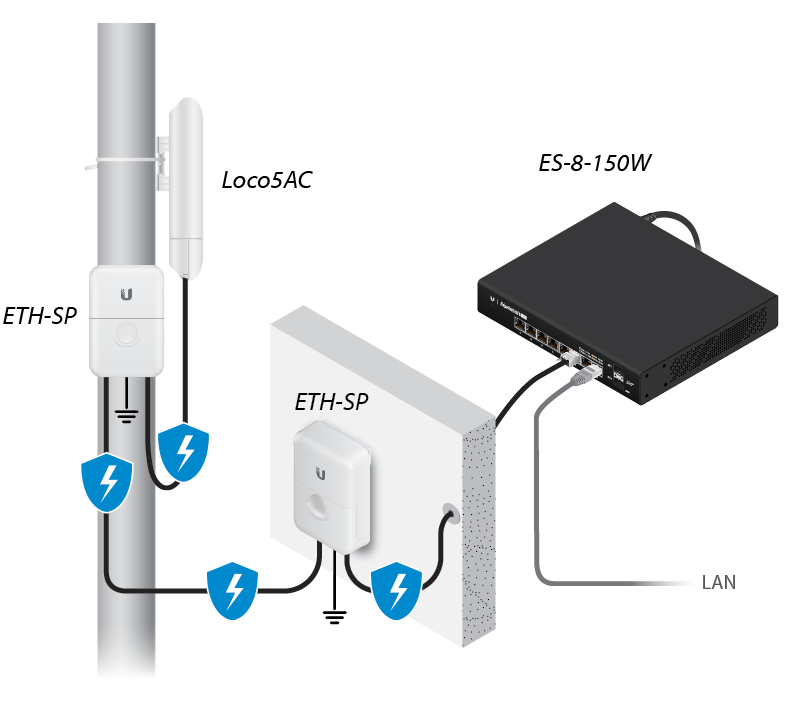

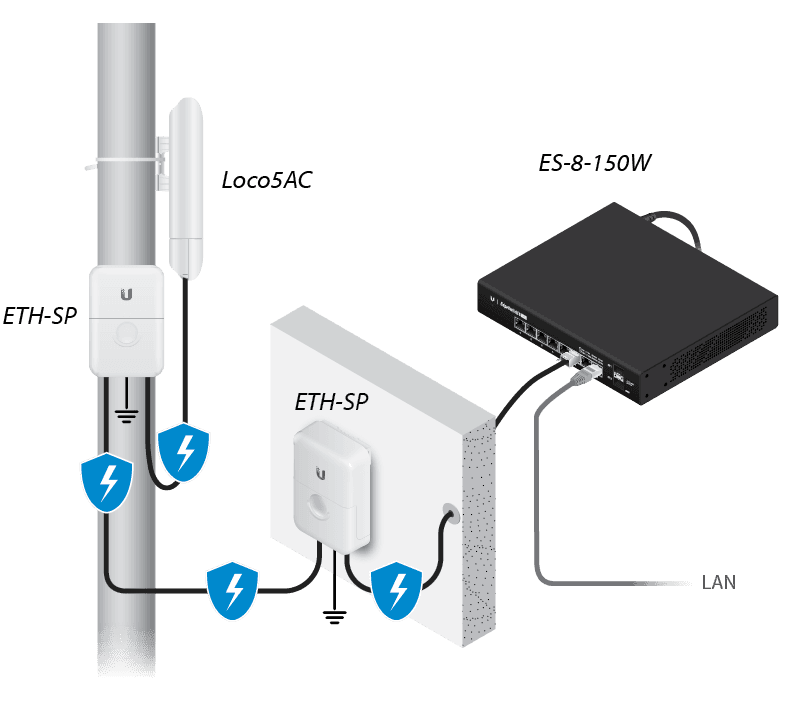

  • Improved Surge Protection – The NanoStation AC loco utilizes the latest ESD protection to help protect against power surges.
  • Efficient Footprint – The radio and antenna are combined into a single body that takes up minimal space.
  • Quick Installation – No fasteners are required for pole-mounting installation.
  • Ubiquiti NanoStation AC loco NS-5ACL-US (QNTY 2) 5GHz 802.11ac airMAX CPE Radio 450Mbps Wireless Access Point with PoE POE-24-7W-G Included (QNTY 2)
  • The Loco 5ac indoor/outdoor NanoStation AC loco are compact, high-performance CPEs featuring airMAX AC technology and a dedicated Wi-Fi radio for management.
  • The NanoStation AC and NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry.
  • The NanoStation AC provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently power an external device, such as a PoE security camera, for seamless IP video integratio
  • Ubiquiti PoE Adapters POE-24-7W-G-WH Gigabit POE-24 AC/DC Adapter POE 24V 7W 0.3A Power over Ethernet Adapters.
Category: Tag:

Description

Category Specification
Mechanical

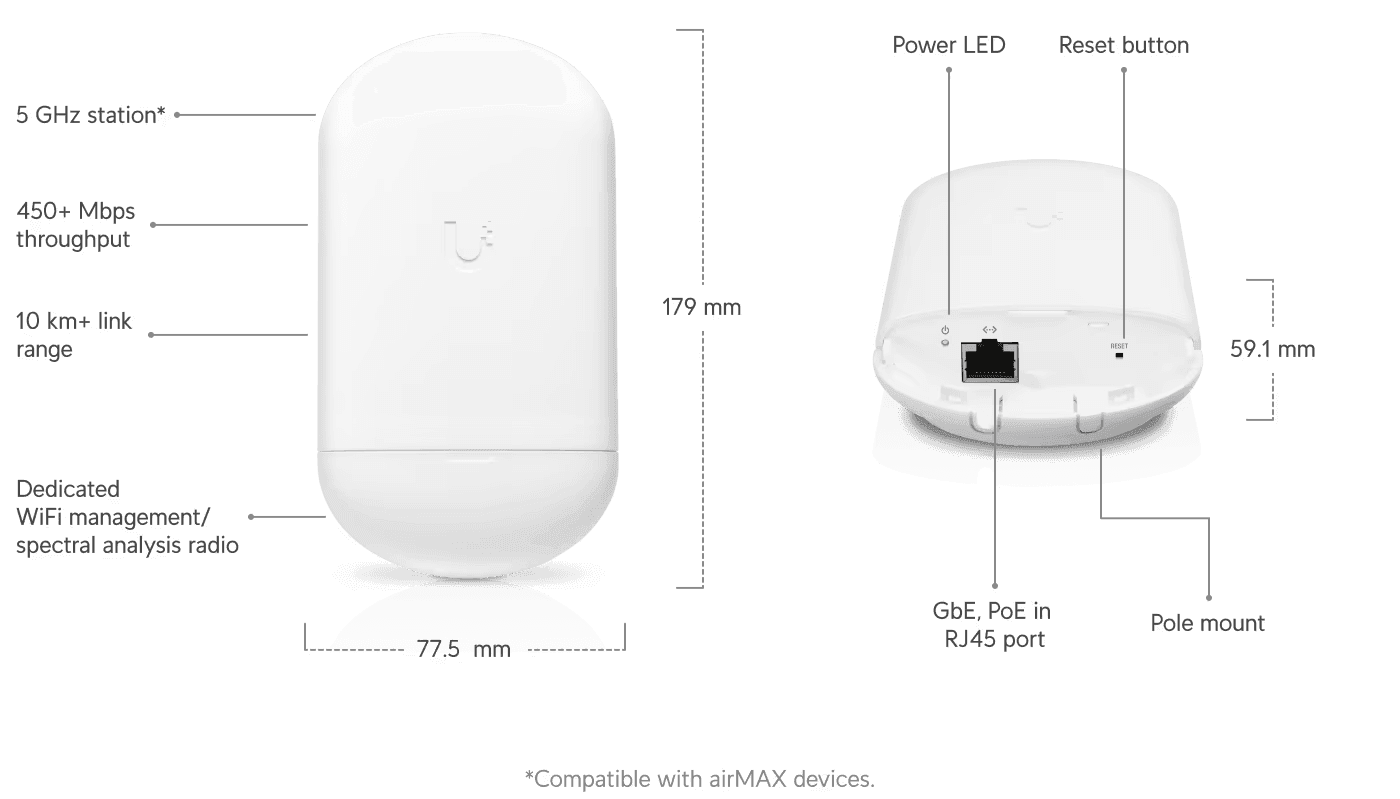

Dimensions 179 x 77.5 x 59.1 mm (7.1 x 3.1 x 2.3″)
Weight 180 g (6.4 oz)
Enclosure Material UV-stabilized plastic
Mounting Pole mounting kit (Included)
Hardware
Networking Interface (1) GbE RJ45 port
Power Method Passive PoE 2-pair (4, 5+; 7, 8 return)
Power Supply 24V, 0.3A gigabit PoE supply (Not included)
Supported Voltage Range 22–27V DC
Max. Power Consumption 7W
LEDs Power, Ethernet, (4) Signal Strength
Ambient Operating Temperature -40 to 70°C (-40 to 158°F)
Ambient Operating Humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
System
Gain 13 dBi
Channel Bandwidths 10/20/30/40/50/60/80 MHz
Cross-Pol Isolation 20 dB min.
Max. VSWR 1.8:1
Beamwidth 45° (H-pol) / 45° (V-pol) / 45° (Elevation)
Polarization Dual linear
Operating Frequency (MHz)
Worldwide 5150-5875 MHz
USA – U-NII-1 5150-5250 MHz
USA – U-NII-2A 5250-5350 MHz
USA – U-NII-2C 5240-5725 MHz
USA – U-NII-3 5725-5850 MHz
Management Radio (MHz)
Worldwide 2412 – 2472 MHz
US/CA 2412 – 2462 MHz
Custom Media Sizes 76.2 x 127 to 215.9 x 355.6 mm
Borderless Printing Yes (up to 8.5 x 11 in, 210 x 297 mm)
Recommended Media Weight 75 g/m²
File Formats Supported (Scan) BMP, PDF, JPG, PNG, TIF
Scanner Type Flatbed only
Enhanced Scanning Resolution Up to 1200 dpi
Optical Scan Resolution Up to 1200 dpi
Hardware Scan Resolution Up to 1200 x 1200 dpi
Maximum Scan Size 216 x 297 mm
Scan Technology Contact Image Sensor (CIS)
Copy Speed (Black – ISO) Up to 10 cpm
Copy Speed (Color – ISO) Up to 2 cpm
Copy Resolution (Black & Color Text/Graphics) Up to 600 dpi
Maximum Copies Up to 99 copies
Copy Settings
Number of Copies, Resize, Quality, Lighter/Darker, Paper Size, Paper Type, ID Copy, Enhancement
Power Consumption 0.12W (manual-off), 3.12W (ready), 0.75W (sleep)
Power Requirements
Input voltage: 220 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz)
Operating Humidity Range 15% to 80% RH (non-condensing)
Recommended Humidity Range 20% to 80% RH
Non-Operating Humidity Range 5% to 90% RH (non-condensing)
Operating Temperature Range 5°C to 40°C
Typical Electricity Consumption (TEC) 0.13 kWh/Week
Energy Saving Features HP Auto-Off Technology
Ecolabels Conforms to ecolabel energy efficiency limits
Safety Standards
IEC 60950-1 & IEC 62368-1 compliant; EU LVD and EN 60950 & EN 62368 compliant; UL GS approved; Russia EAC
Security Management No
Dimensions (W x D x H) 447 x 373 x 158 mm
Maximum Dimensions (W x D x H) 449 x 605.65 x 258.7 mm
Weight 5.14 kg
What’s in the Box
Printer, HP GT53XL Black Ink (3), HP GT52 Ink (Cyan, Magenta, Yellow), Power Cord, Setup Guide, Flyers
Replacement Cartridges
HP GT53 (90ml & 135ml Black), HP GT52 Cyan, Magenta, Yellow
Warranty
One year standard or 30,000 pages limited warranty (up to 3 years extended warranty on registration)
