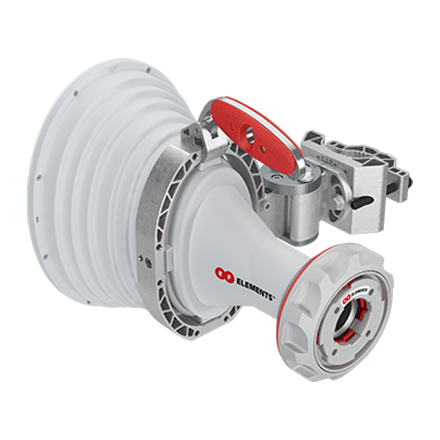

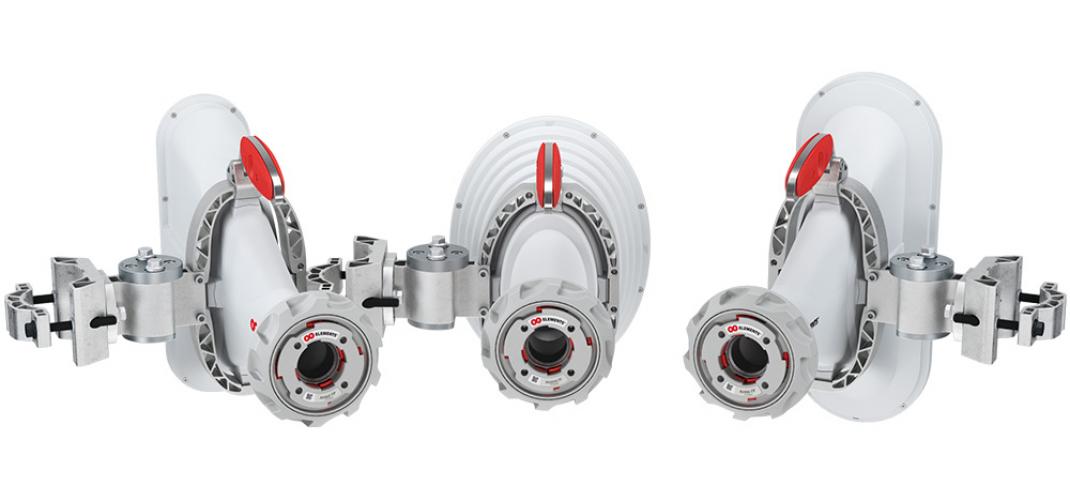

RF - Elements 30° Asymmetrical Beam Antenna

Technical Specifications

• Antenna Connection :TwistPort™ - Quick Locking Waveguide Port: 2 ports
• Antenna Type :Horn
• Materials
• • UV Resistant ABS Plastic
  • Polycarbonate
  • HDPE (High-Density Polyethylene)
  • Aluminium
  • Stainless Steel
• Environmental :IP55 rated (protection against dust and low-pressure water jets)
• Pole Mounting Diameter
• • Compatible with poles of diameter: 40-80 mm (1.5-3.1 inch)
  • Recommended diameter: Close to 80 mm (3.1 inch) for optimal performance
• Temperature Range :Operational: -35°C to +60°C (-31°F to +140°F)
• Wind Survival : Withstands winds up to 160 km/h (100 mi/h)
• Wind Load : 71 N (Front) / 49 N (Side) at 160 km/h (100 mi/h)
• Effective Projected Area
• • 580 cm² (Front) / 404 cm² (Side)
  • Equivalent to 89.9 in² (Front) / 62.6 in² (Side)
• Mechanical Adjustment
• • Elevation: ± 20°
  • Azimuth: ± 20°
• Weight
• • 4.2 kg (9.2 lbs) – Single unit
  • 6.3 kg (13.8 lbs) – Single unit including packaging
• Packaging Dimensions :Single Unit Retail Box: 483 × 334 × 235 mm (19.0 x 13.1x 9.2 inch

Key Features

• Antenna Design : High-Performance Horn Antenna: Optimized for superior gain and directivity.
• Frequency Range :Supports 5 GHz Band: Covers a wide frequency range for enhanced connectivity.
• Gain :High Gain: Up to 30 dBi, providing excellent signal strength over long distances.
• Beamwidth :Narrow Beamwidth: 3.5° horizontal and 30° vertical, ideal for point-to-point applications.
• TwistPort™ Connector :Quick Locking Waveguide Port: Ensures secure and easy installation.
• Robust Construction :Durable Materials: Made from UV Resistant ABS Plastic, Polycarbonate, HDPE, Aluminium, and Stainless Steel for longevity.
• Environmental Protection :IP55 Rated: Offers protection against dust and water, suitable for outdoor use.
• Mechanical Adjustments :Adjustable Elevation and Azimuth: ± 20° for precise alignment.
• Temperature Tolerance :Wide Operating Temperature Range: -35°C to +60°C (-31°F to +140°F).
• Wind Resistance :High Wind Survival: Rated for survival in winds up to 160 km/h (100 mi/h).
• Compact Size :Lightweight Design: Weighs only 4.2 kg (9.2 lbs) for easy handling and installation.
• Packaging :Efficient Retail Packaging: Dimensions of 483 × 334 × 235 mm (19.0 x 13.1 x 9.2 inch) for convenient storage and transport.
